MOTHER GIGABYTE B550M DS3H

$148.690,06
mother-gigabyte-b550m-ds3h
mother-gigabyte-b550m-ds3h
mother-gigabyte-b550m-ds3h
mother-gigabyte-b550m-ds3h
* LAS IMAGENES SON AL EFECTO MERAMENTE ILUSTRATIVO Y NO SON CONTRACTUALES

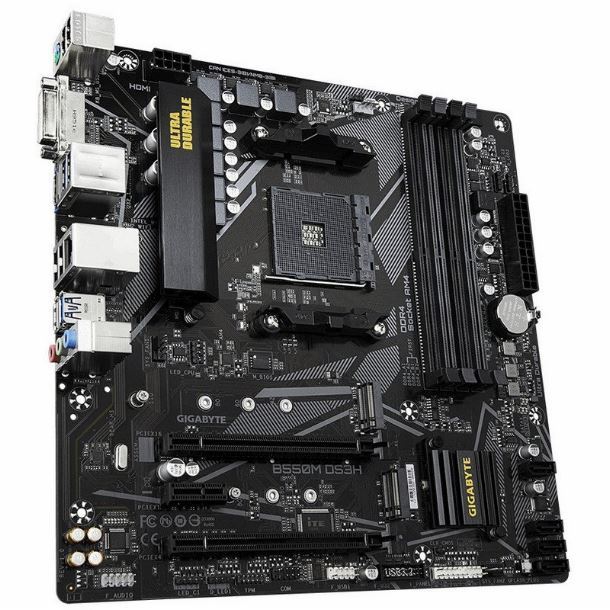

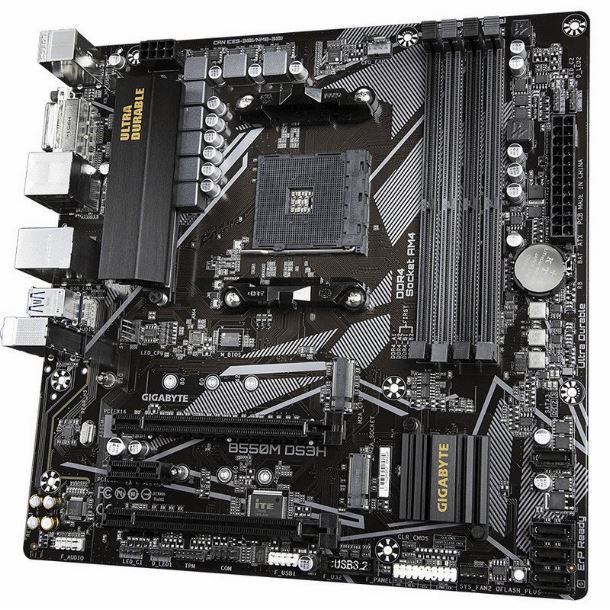

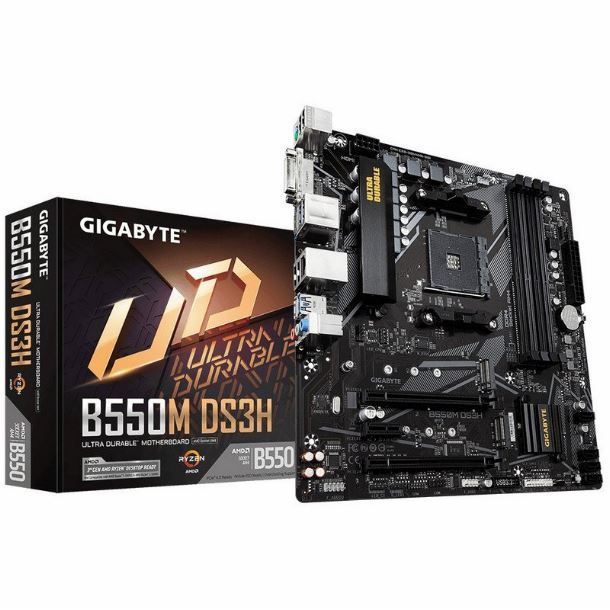

MOTHER GIGABYTE B550M DS3H

Código del producto: MOT1618
Precio efectivo o transferencia
$148.690,06
Precio MercadoPago $163.559,11
¡6 cuotas de $34.694,35!
En stock

La placa base Gigabyte B550M DS3H soporte los procesadores AMD Ryzen de tercera generación.

Características:
Admite procesadores AMD Ryzen ™ de tercera generación
Doble canal ECC / No ECC DDR4 sin búfer, 4 DIMM
Solución VRM digital pura de 5 + 3 fases con MOSFET de bajo RDS (encendido)
Ranura Ultra16 Durable ™ PCIe 4.0 Ready x16
Conectores duales Ultra-Fast NVMe PCIe 4.0 / 3.0 M.2
Condensadores de audio de alta calidad y protección contra ruido de audio para la mejor calidad de audio
LAN GbE Gaming 8118 exclusiva de GIGABYTE con gestión de ancho de banda
Soporte trasero HDMI y DVI
RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras LED direccionables y LED RGB
Smart Fan 5 presenta múltiples sensores de temperatura, encabezados de ventilador híbridos con FAN STOP
Q-Flash Plus Update BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
Diseño de resistencias anti-azufre
Especificaciones:
Procesador
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Por favor, acuda a "lista de soporte de CPU" para más información.)
Chipset
AMD B550
Memoria
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
Arquitectura de memoria Dual Channel
Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8
Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
Soporte para módulos de memoria Extreme Memory Profile (XMP)
(Por favor diríjase a la "Lista de memorias soportadas" para más información.)
Gráfica Integrada
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek® ALC887 codec
Audio de alta definición
2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE s website for details on configuring the audio software.
LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Zócalos de Expansión
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 mode
Interfaz de almacenamiento
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs::3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs::Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset::Soporta RAID 0, RAID 1, y RAID 10
USB
Chipset:2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
CPU:4 x USB 3.2 Gen 1 ports on the back panel
Conectores Internos E/S
1 x conector de alimentación principal ATX 24-pin
1 x conector de alimentación ATX 12V 8-pin
1 x conector del ventilador de la CPU
2 x cabeceras para ventilador del sistema
2 x Addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x conectores M.2 Socket 3
4 x conectores SATA 6 Gb / s
1 x conector del panel frontal
1 x conector de audio en el panel frontal
1 x USB 3.2 Gen 1 header
1 x conector USB 2.0/1.1
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
La función TPM es opcional según las diferentes políticas locales
1 x conector del puerto de serie
1 x Clear CMOS jumper
1 x Q-Flash Plus button

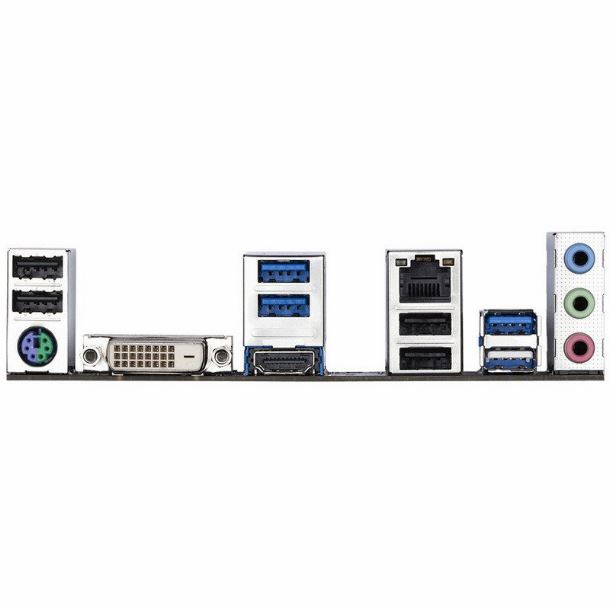

Panel E/S Trasero
1 x puerto teclado / ratón PS / 2
1 x puerto DVI-D
1 x HDMI
4 x USB 3.2 Gen 1 ports
4 x puertos USB 2.0/1.1
1 x Puerto RJ-45
3 x audio jacks
Controlador E/S
Chip controlador E/S iTE®
Monitorización Hardware
Detección de voltaje
Detección de temperatura
Detección de la velocidad del ventilador
Advertencia de sobrecalentamiento
Aviso en caso de fallo en el ventilador
C
