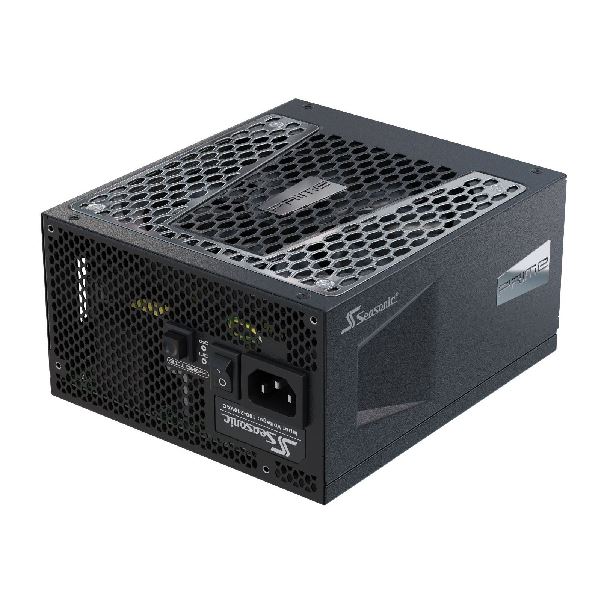

PRIME-GX-1300 Technical Specifications 80PLUS® Gold Cybenetics Efficiency Level TBA Cybenetics Noise Level TBA Form Factor Intel ATX 12 V Dimensions 170 mm (W) x 150 mm (L) x 86 mm (H) Fan Information Fan Size 135 mm Fan Control Premium Hybrid Fan Control - fanless untli 20% load Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Webbed cables (MB, CPU, PCIe) Flat black cables Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) MTBF @ 25 °C, excl. fan 150,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output AC Input Voltage: 100 V - 240 V Current: 15 A7.5 A Frequency: 50 Hz60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 25 A 25 A 108 A 0.3 A 3 A 125 W 1296 W 3.6 W 15 W Total continuous power 1320 W
