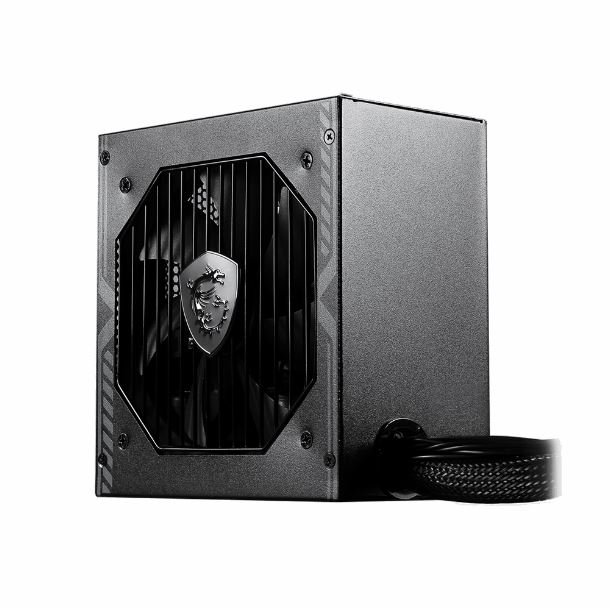

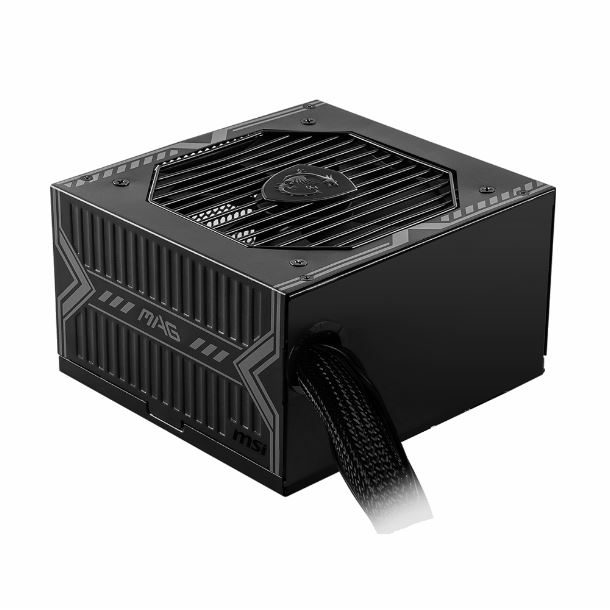

PRODUCT NAME MAG A650BN FORM FACTOR ATX RATED WATTAGE 650W EFFICIENCY RATING 80 PLUS Bronze (up to 85%) MODULAR No FAN SIZE 120 mm FAN BEARING Sleeve Bearing DIMENSIONS (DXWXH) 140 x 150 x 86 mm PFC TYPE Active PFC INPUT VOLTAGE RANGE 100~240 VAC INPUT FREQUENCY RANGE 50~60 Hz PROTECTION OCP / OVP / OPP / OTP / SCP ATX (24 PIN) 1 EPS (8 PIN) 1 PCI-E (6+2 PIN) 2 SATA (15 PIN) 5 MOLEX (4 PIN) 2 FDD (4 PIN) 1
