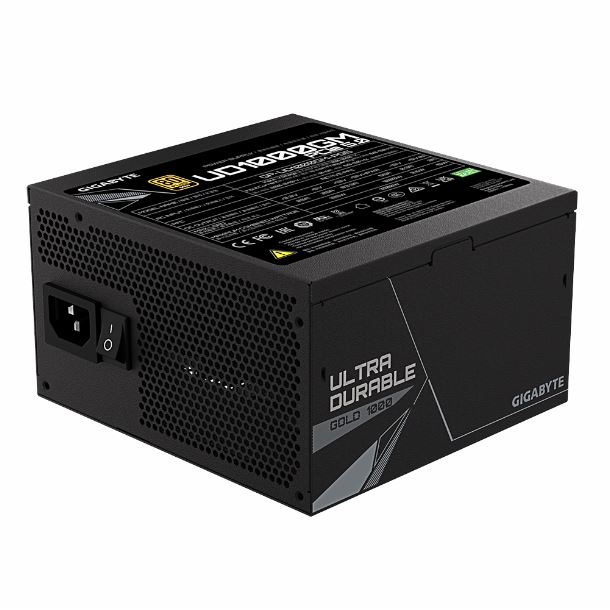

Model GP-UD1000GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black

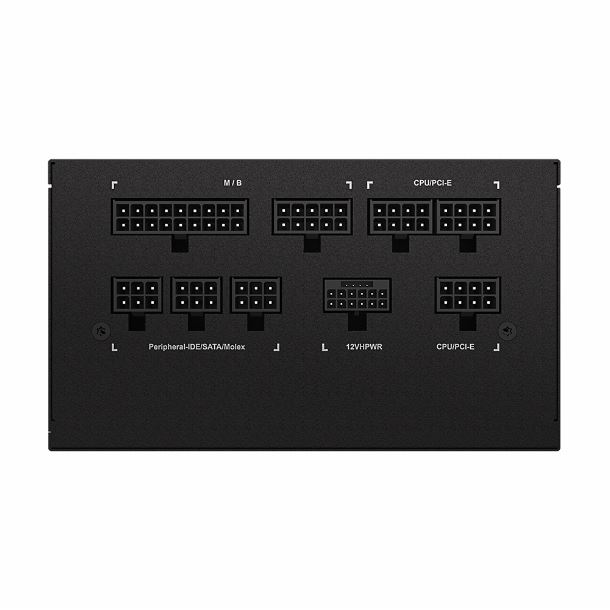

Connectors ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 6 : 600mm+150mm*3
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
