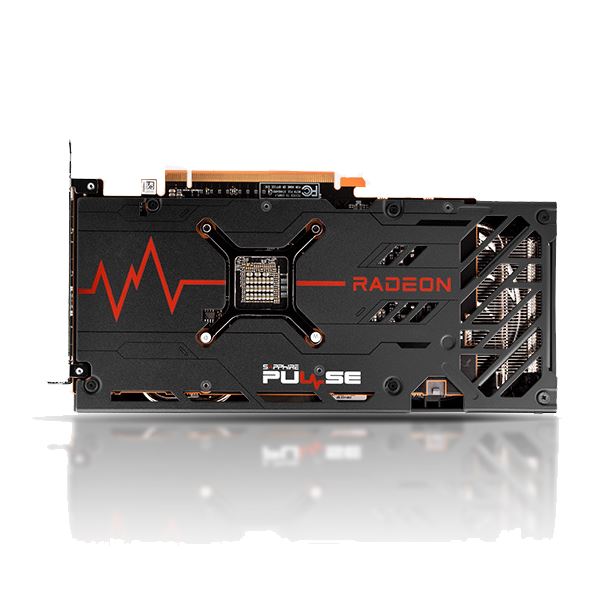

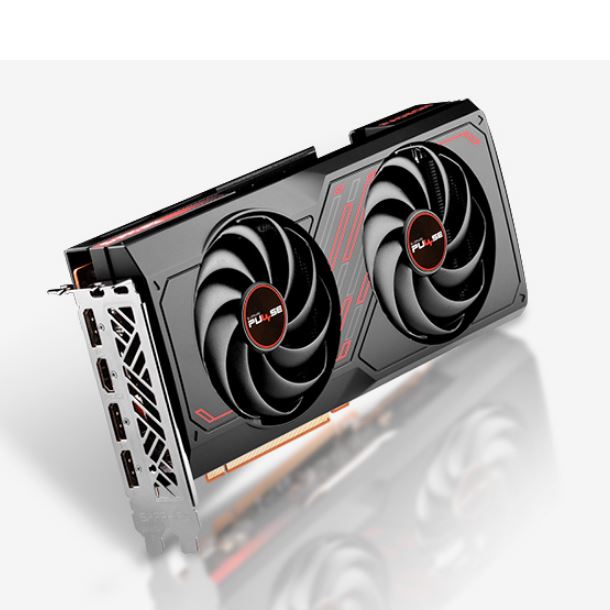

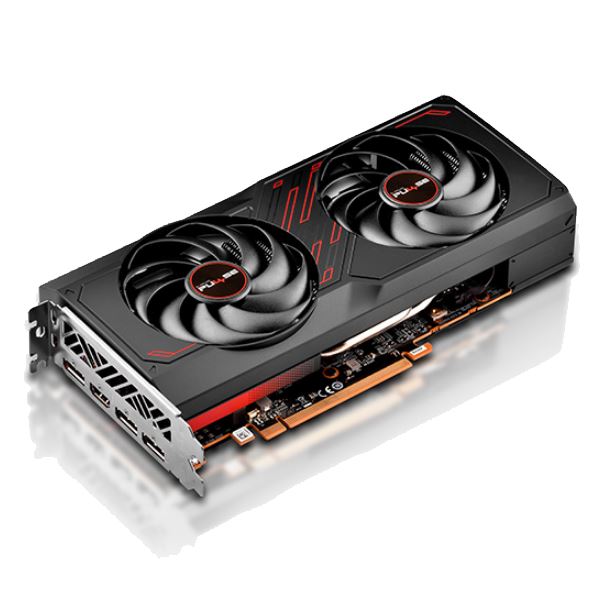

GPU AMD Radeon™ RX 7600 Graphics Card AMD RDNA™ 3 Architecture
Engine Clock Boost Clock: Up to 2755 MHz Game Clock: Up to 2355 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. Stream Processors 2048 Compute Units 32 CU Infinity Cache 32MB Ray Accelerators 32 Memory Size/Bus 8GB/128 bit GDDR6 Memory Clock 18 Gbps Effective Displays Maximum 4 Displays
Resolution HDMI™: 7680×4320 DisplayPort 1.4: 7680×4320
Interface PCI-Express 4.0 x8
Output 1x HDMI 3x DisplayPort
BIOS Support UEFI Game Index 1080P Ultimate
Sapphire Features Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Optimized Composite Heatpipe TriXX Supported TriXX Boost
AMD Features AMD RDNA 3 Architecture DirectX 12 Ultimate AMD Smart Access Memory AMD Infinity Cache PCI Express 4.0 Support AMD FreeSync™ Technology DisplayPort 1.4 with DSC HDMI Video Streaming up to 8K AMD Radeon VR Ready Premium AMD Radeon Image Sharpening AMD Radeon Anti-Lag AMD Software: Adrenalin Edition™ Technology Game Driver Optimizations
Cooling 2 Fans Form Factor 2 slot, ATX Dimension: 240(L)X 107.1(W)X 44.07 (H)mm Power Consumption 185W Total Board Power OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement Minimum 550 Watt Power Supply 1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
